SKU:
C2C

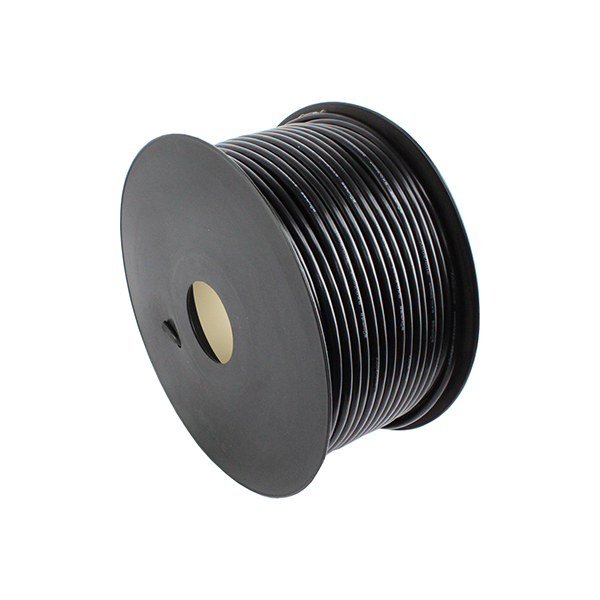

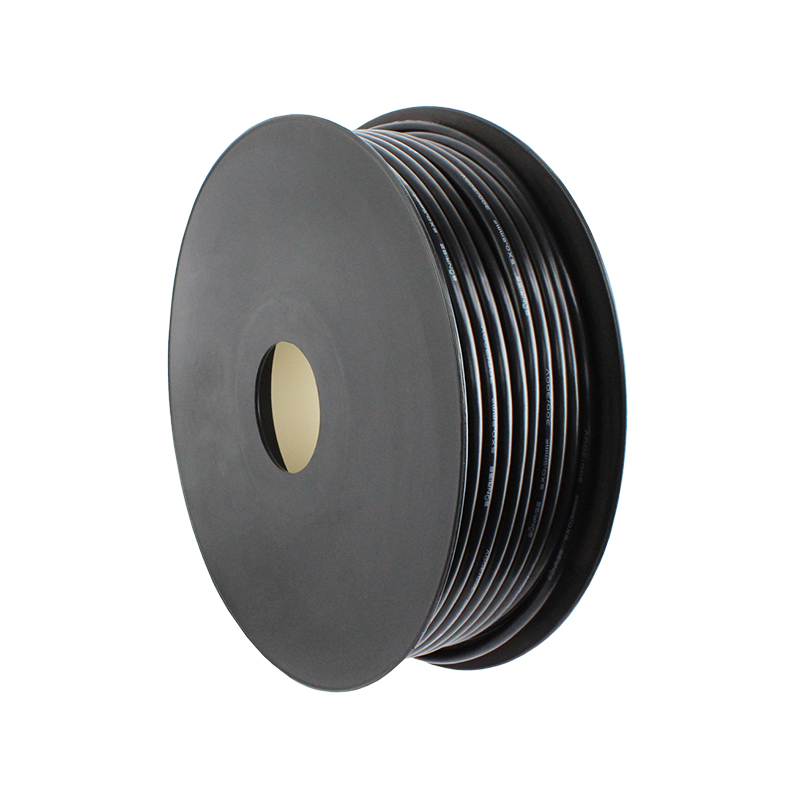

2 Core Electrical Cable
$2.00 – $190.00
Twin core cable is ideal for wiring a range of products to your trailer, but can also be used in a wide number of other applications.
Description
The twin core cable is often used on trailers for wiring your lights and electric brakes. However, due to the PVC material used for the jacket and insulation, this can be used for various automotive applications and not just limited to trailers. It is made using Oxygen Free High Conducivitiy (OHFC) copper, which gves better load surge resistance and higher stability. The wire is waterproof, fire-retardant and can withstand extreme temperature changes without losing its effective conductivity.
Advantages:
- Pure copper and oxygen free
- Bare copper conductors
- Reinforced inner and out PVC jacket
- Waterproof and fire retardent
- Flexible and durable
- Easy to install
What’s Included:
- Your chosen thickness and length of 2 core cable.
- If purchasing per metre, please make your sure quantity is set to how many metres you are looking to get. For e.g. Qty 5 = 5 metres (1 continuous length)
Features
- Twin core oxygen free high conductivity (OHFC) copper in compliance with AS 1125.
- V90 PVC Insulated and Sheathed Automotive Cable in compliance with AS/NZS 3808:2000.
- Volatage Rating: AC 50V / DC 120V in compliance with AS/NborZS 3000:2018.
Specifications
Number of cores
2
Core colours
Red, Black
Conductor Stranding
7 / 0.32
Nominal Conductor Area
0.56mm^2
Automotive Industry Equivalent
2mm
Conductor Material
Copper
Maximum DC Resistance at 20° C (mΩ/mt)
33.1
AMP Rating at 30°C
10
Avg Insulation Thickness (mm)
0.4
Avg Sheath Thickness (mm)
0.5
Cable Mass (Kg/ 100mt)
2.3
Nominal Outer Diameter of Cable (mm)
3.5 x 5.2
Rated Temperature
'-20°C to 70°C
