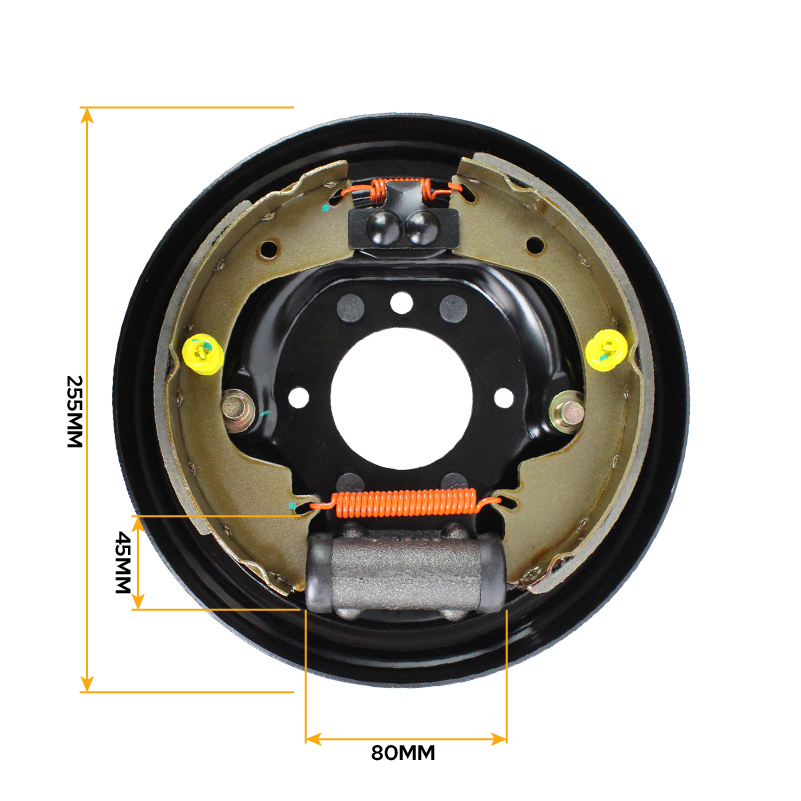

9″ Hydraulic Backing Plate Pre Studded Left Hand Side
$66.00
Hydraulic backing plates are used to provide a reliable and efficient braking system, with next to no maintainence. A simple solution to tow under 2000kg which doesn’t require any external controller.
Description
Hydraulic drum brakes are similar to those used in the automotive industry and are reliable and efficient. The backing plate assembly comes fully equipped with everything needed to be mounted straight onto the mounting bracket, which is more convenient than replacing individual parts. It is activated by pressing down on the foot pedal, which in turn forces the hydraulic fluid to push the brake shoes to make contact with the drum and slow down the vehicle. Backing plates are not interchangeable and have a left and right side, with the right side being used on the driver side and left on passenger side. For any hydraulic brake system, it is important to bleed air before connecting the new backing plates.
Advantages
- Simple and easy installation
- Simple solution for GTM under 2000kg
- Pre studded with high tensile bolts
- Low maintainence
- Brake shoes and wheel cylinder pre assembled
- Suits 9″ brake drums
What’s Included
- 1 x 9″ Hydraulic backing plate (Left)
Features
- Quick and easy installation for building or replacing on any trailer or caravan.
- Reliable and efficient brakes, which can be used without a controller and little maintainence.
- Recommended max capacity per axle 1450kg using 13/14″ wheels
