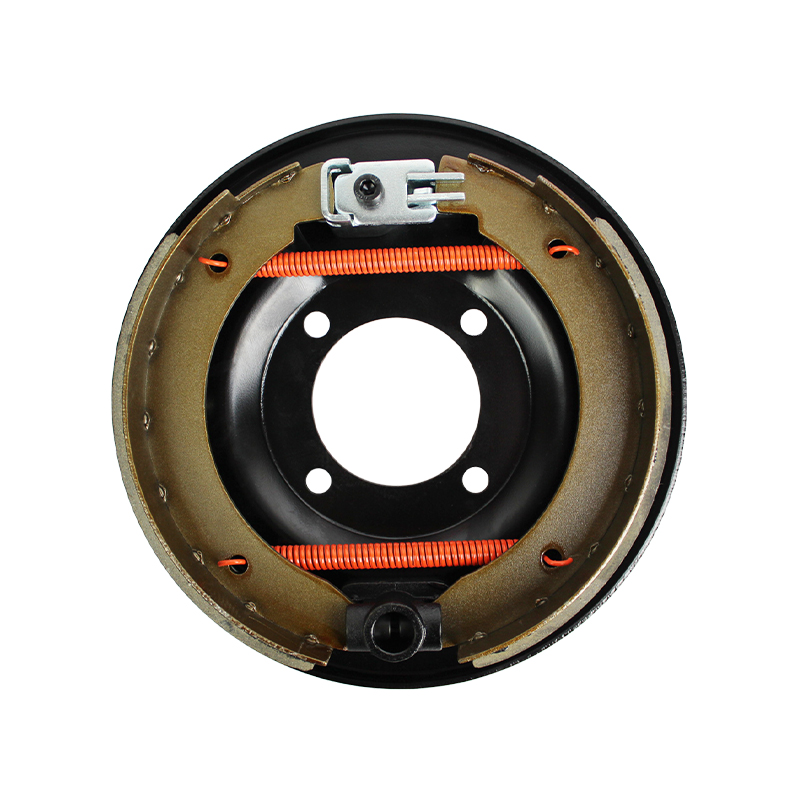

9″ Mechanical Brake Backing Plate Right Hand Side
$66.00
Mechanical backing plates are used to provide a reliable and efficient braking system, with next to no maintainence. A simple solution to tow under 2000kg which doesn’t require any external controller.
Description
Mechanical drum brakes are cable activated at the brake lever, causing the brake shoes to create a braking force when contacting the drums. The backing plate assembly comes fully equipped with everything needed to be mounted straight onto the mounting bracket, which is more convenient than replacing individual parts. Backing plates are not interchangeable and have a left and right side, with the right side being used on the driver side and left on passenger side.
Advantages
- Simple and easy installation
- Simple solution for GTM under 2000kg
- Pre studded with high tensile bolts
- Low maintainence
- Brake shoes, springs and bolts fully assembled.
- Suits 9″ brake drums
What’s Included
- 1 x 9″ Mechanical backing plate (Right)
Features
- Quick and easy installation for building or replacing on any trailer or caravan
- Reliable and efficient brakes, which don’t require any controller
- Recommended max capacity per axle 1450kg using 13/14″ wheels, 1200kg using 15/16″ wheels
