SKU: DSMDLK

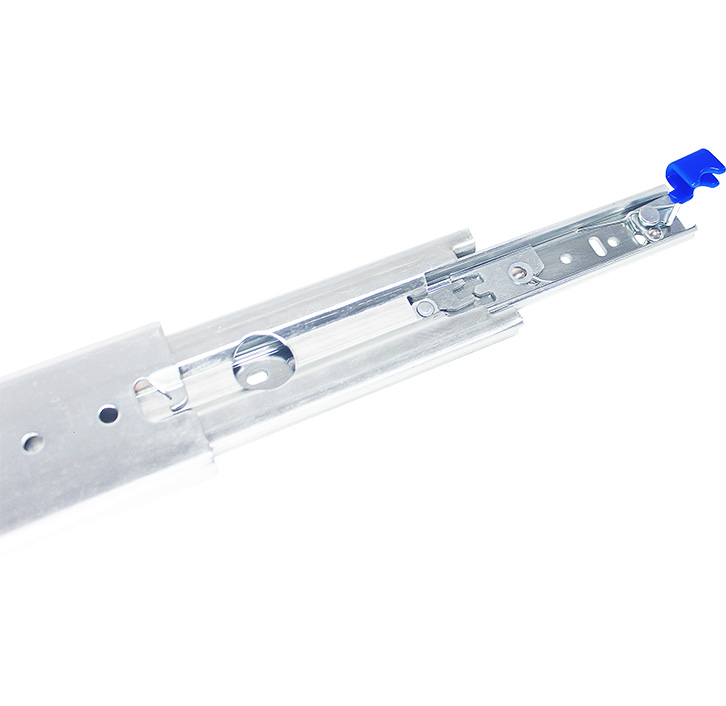

Drawer Slides Medium Duty Locking 125kg Rating

$58.30$92.40

The medium duty locking drawer slides are perfect for cabinetry, trailers, 4x4s and anywhere you want sliding functionality. Each drawer side is manufactured from cold rolling steel for massive 125kg capacity and comes as a pair.

Description

These medium duty locking drawer slides are suited perfectly for heavy objects from outdoor to indoor use. They can be used for cabinetry, trailers, 4x4s and anywhere you want sliding functionality. 3-Fold Full extension available on these drawer slides allowing you to reach the back of the drawer. Manufactured from cold rolling steel for a bigger loading capacity. Solid stainless steel ball bearing runners to ensure smooth sliding of the drawers. Each drawer slide extends approximately double the closed length.

Advantages:

  • Designed for drawers rated up to 125g
  • Cold rolling steel with zinc plated finish
  • Side mounted screw on or bolt on
  • Comes together as a pair
  • Solid stainless steel ball bearings
  • Pick from 600mm – 1000mm



What’s Included:

  • 2 x Medium duty locking draw slides (screws not included)
Features
  • Anti-oxidation processing for added corrosion resistance
  • 3-fold telescopic design offering full extension
  • Tested to withstand over 50,000 openings and closings
Specifications
Product Type
Locking drawer slides
Material
Cold rolling steel
Finish
Zinc
Surface
Anti-oxidation processing
Rating
125kg
Closed length
500-1000mm
Extended length
Double closed length (1000-2000mm)
Width
53mm ± 0.5mm
Height / Thickness
19mm ± 0.5mm
