SKU:
BH16N

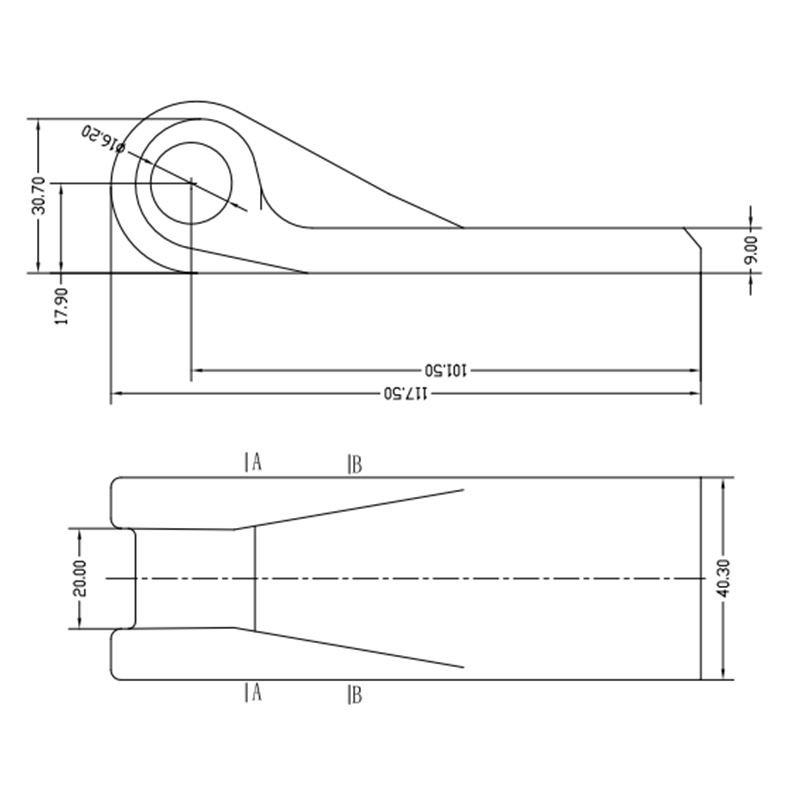

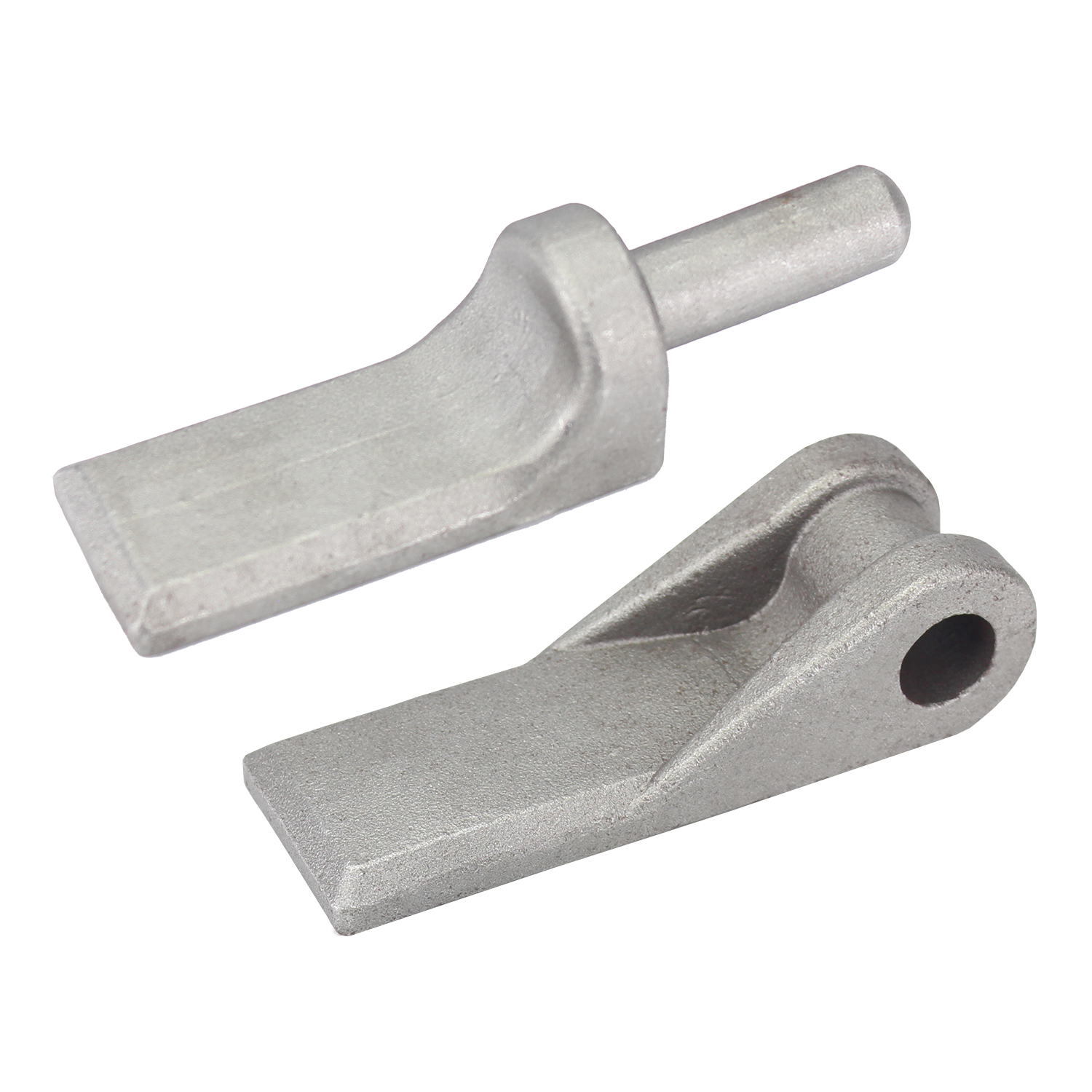

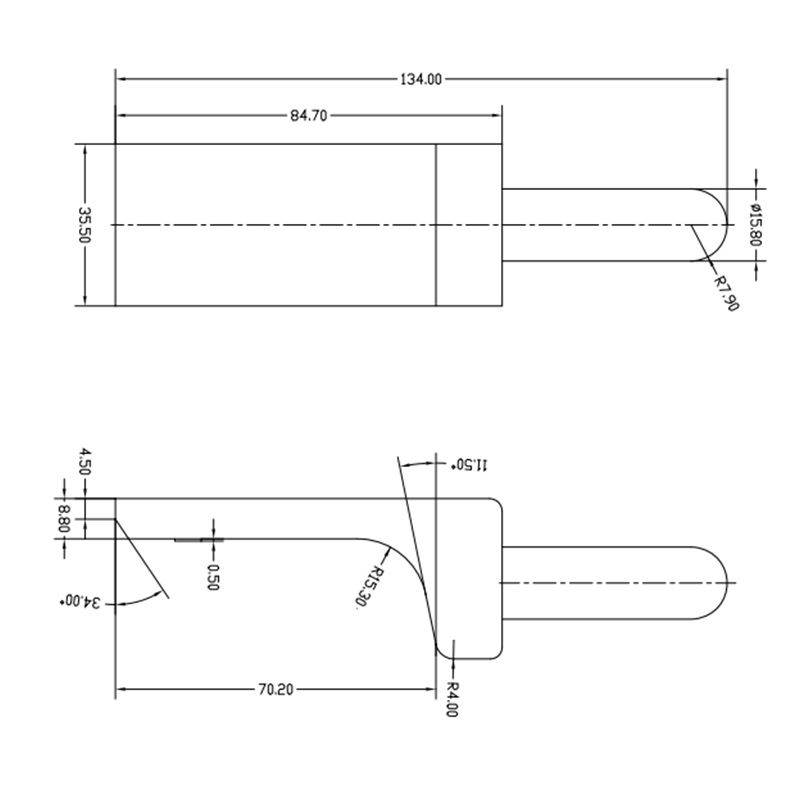

Drop Side Hinge 83 x 35mm with 16mm Pin
$18.00
This drop side hinge is an excellent option for building or replacing the tailgate doors of caravans, utes, trailers as well as the trailer tipper or body.
Description
The 83 x 35mm with 16mm Pin Drop Side Hinge is an excellent premium hinge that can be used for multiple purposes. Alongside its use in caravans, this hinge is commonly used for the tailgate door of trailers and ute’s, allowing the smooth rotational opening of the door upon unlocking. Its attached via a simple weld-on process, providing safe and secure attachment, and has removable sides to increase the space available.
Advantages:
- Highly durable steel build
- Safe and secure attachment
- Easy installation via a weld-on process
- Smooth function on rotation
- Super versatility across several applications
- Compact design requiring minimal space
What’s Included:
- 1 x 83 x 35mm with 16mm Pin Drop Side Hinge
Features
- Easy to install via a weld-on process, providing secure attachment
- Super versatility across several applications including caravans, ute’s and trailer tailgates
- Durable and solid build, ensuring safe attachment and smooth rotational movement with removable sides
Specifications
Dimensions (Base only)
83 x 35mm
Pin Size
16mm
Material
Forged Steel
Surface Treatment
Natural
