SKU: EW15000

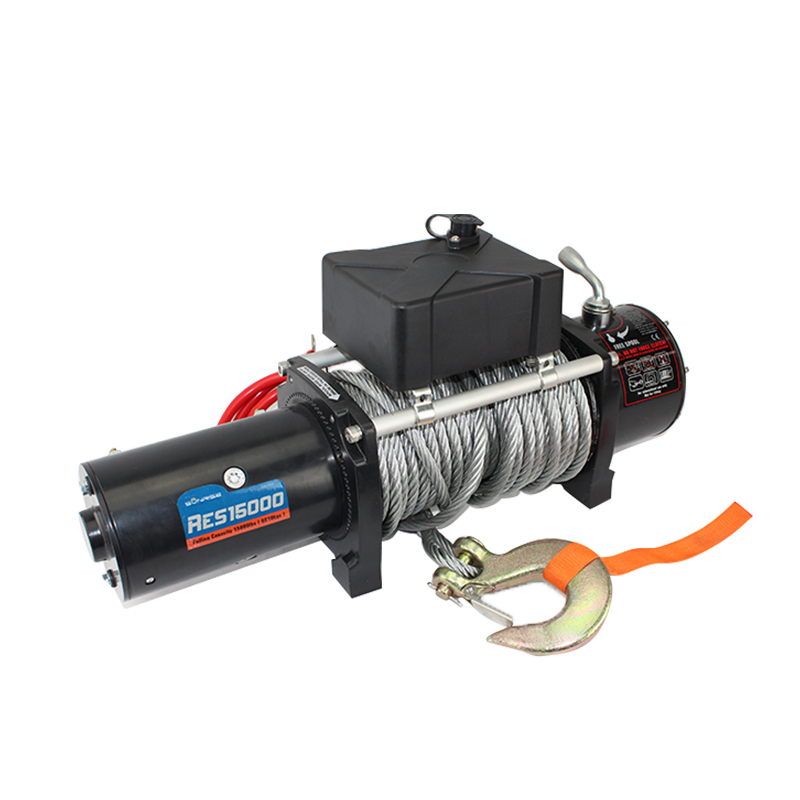

Electric Winch 15000lbs 12V 315:1 Gear Ratio 22m Cable

$1,320.00

This electric winch is an excellent device that provides the necessary tension force required to pull any broken down heavier vehicles, most commonly used to move boats from the sea to land for loading onto a trailer.

Description

This 15000lbs 12V 315:1 Gear Ratio 22m Cable Electric Winch provides the necessary force required to move large vehicles such as boats onto trailers via mechanical rotation of a handle. Being electrically powered, this winch is capable of pulling heavier loads (ie. larger vehicles and boats). Additionally, its safety profile is increased through a automatic load-holding brake mechanism, which prevents vehicle detachment and ensures smooth movement.

Advantages:

  • Fast Line Speed
  • Low Electric Current
  • Automatic Load-Holding Brake
  • Excellent durability
  • IP67 Rating
  • Smooth operation



What’s Included:

  • 1 x 15000lbs 12V 315:1 Gear Ratio 22m Cable Electric Winch



Purchase our Wireless remote to upgrade your electric winch to a wireless one here.

Features
  • This electric winch has low electric current, alongside automatic load-holding brakes, both of which contribute to its excellent safety profile
  • Having a 15000lbs (6810kg) capacity, this electric cable winch can be used for several purposes such as pulling of a boat across shore onto a trailer, pulling out small vehicles which may be broken down etc.
  • This winch contains a snap hook, enabling secure attachment to the vehicle, and the removable handle allows easy replacement if necessary
Specifications
Rated Line Pull
15000lbs (6810kg)
Motor (Series Wound)
12-24V DC Input Power: 6.8hp (5Kw)
Gear Ratio
294:1
Gear Train
3-Stage Planetary
Drum Size
(Dia.) 75 x 228mm Hardened
Rope Supplied
Aircraft Steel Cable
Rope Size
(Dia.) 11mm x 20m
Hook Size
7/16"
Winch Dimensions
828 x 160 x 211mm
Mounting Bolt Pattern
254 x 114.3mm
Net weight
42.3kg
