SKU: EW5000C

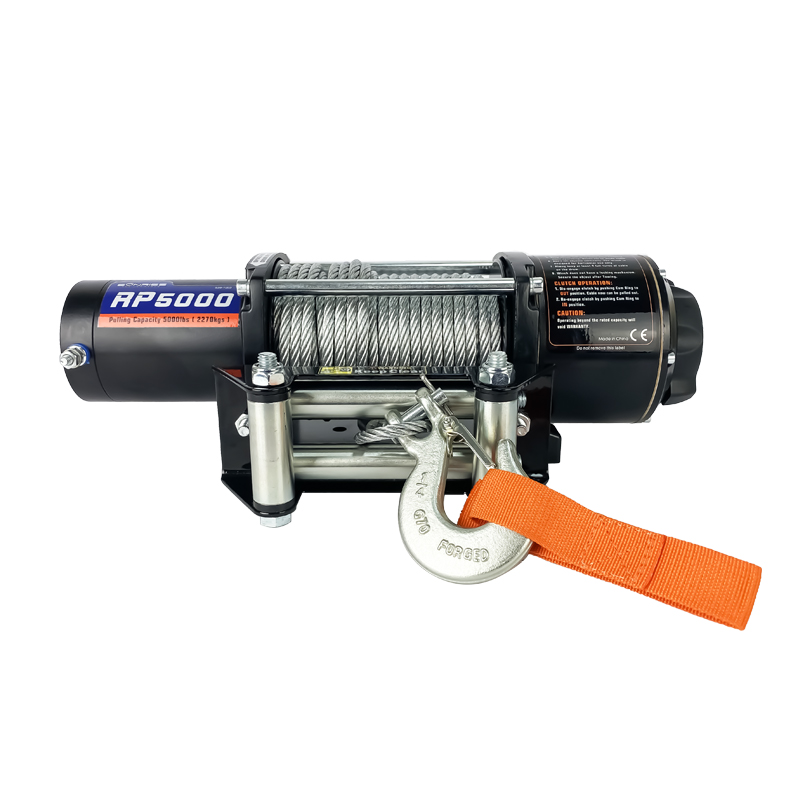

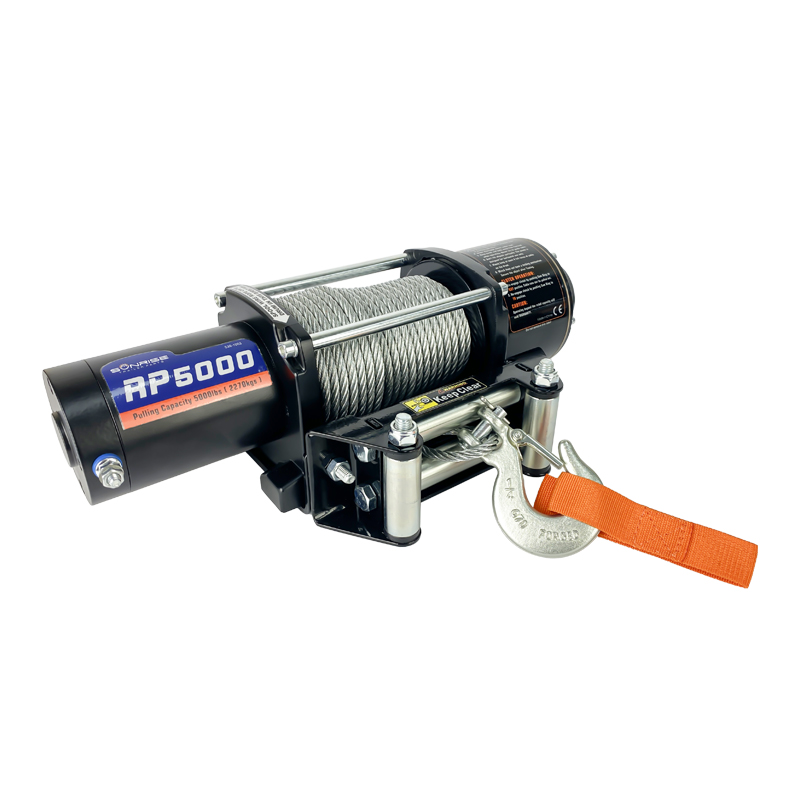

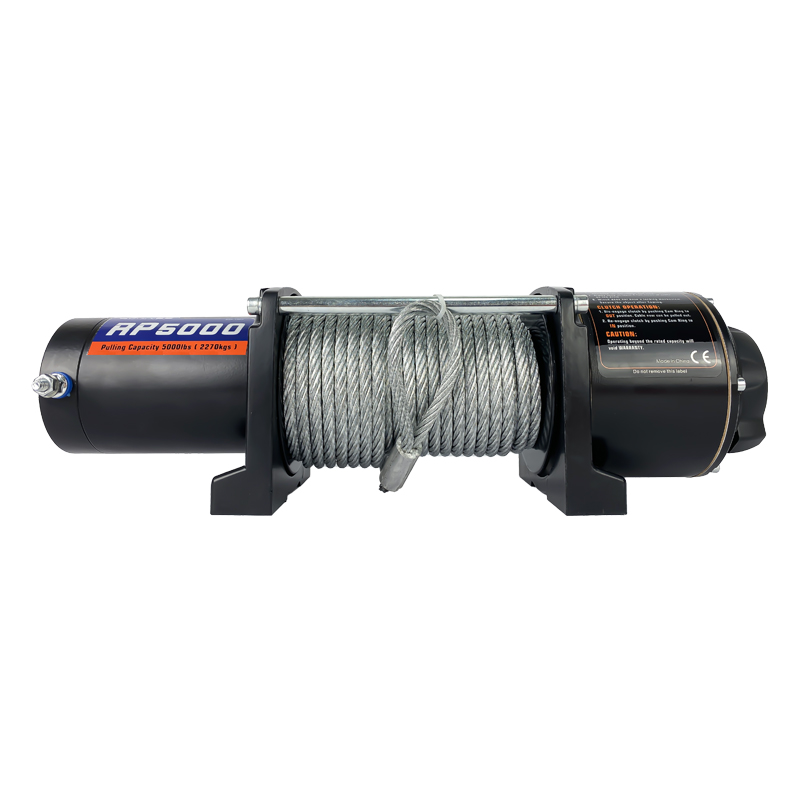

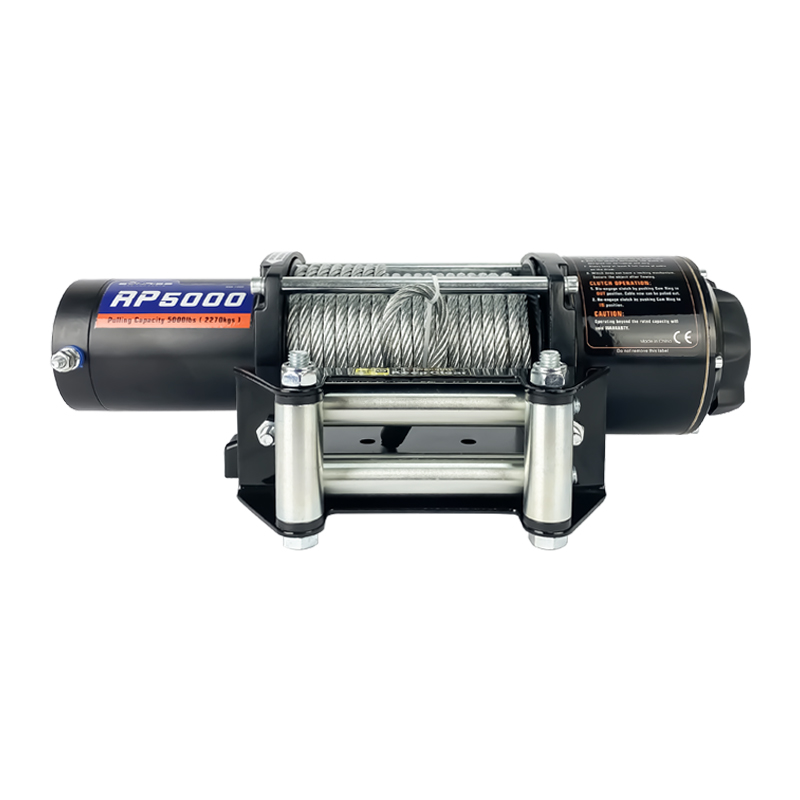

Electric Winch 5000lbs (2268kg) 12V 136:1 Gear Ratio 12m Cable

$479.00

This electric winch is an excellent device that provides the necessary tension force required to pull any broken down heavier vehicles, most commonly used to move boats from the sea to land for loading onto a trailer.

Description

This 5000lbs 12V 136:1 Gear Ratio 12m Cable Electric Winch provides the necessary force required to move large vehicles such as boats onto trailers via mechanical rotation of a handle. Being electrically powered, this winch is capable of pulling heavier loads (ie. larger vehicles and boats). Additionally, its safety profile is increased through a automatic load-holding brake mechanism, which prevents vehicle detachment and ensures smooth movement.

Advantages:

  • Fast Line Speed
  • Low Electric Current
  • Automatic Load-Holding Brake
  • Excellent durability
  • IP67 Rating
  • Smooth operation

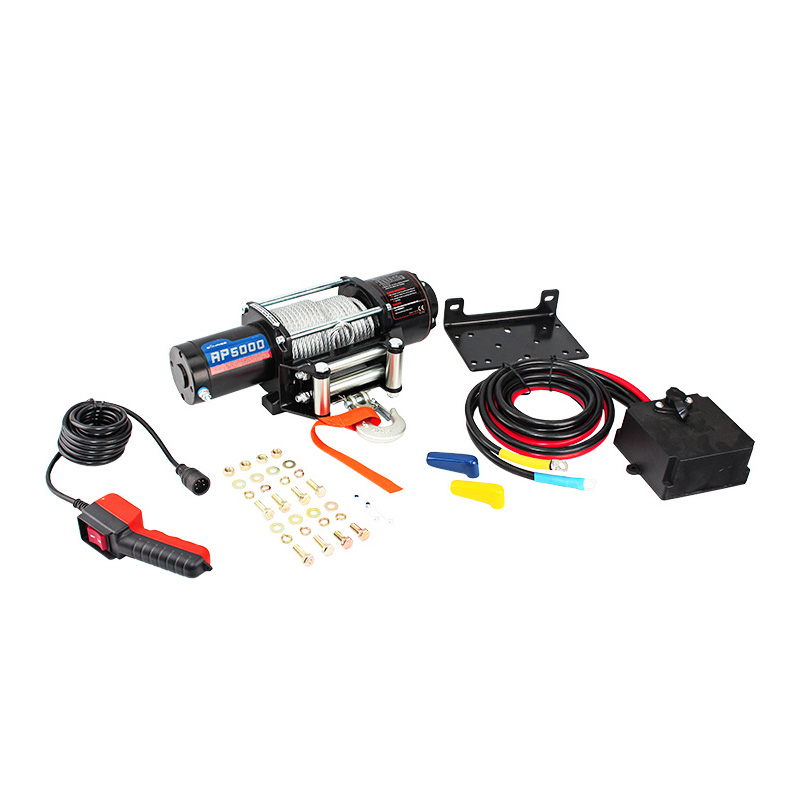

What’s Included:

  • 1 x 5000lbs 12V 136:1 Gear Ratio 12m Cable Electric Winch



Purchase our Wireless remote to upgrade your electric winch to a wireless one here.

Features
  • This electric winch has low electric current, alongside automatic load-holding brakes, both of which contribute to its excellent safety profile
  • Having a 5000lbs (2268kg) capacity, this electric cable winch can be used for several purposes such as pulling of a boat across shore onto a trailer, pulling out small vehicles which may be broken down etc.
  • This winch contains a snap hook, enabling secure attachment to the vehicle, and the removable handle allows easy replacement if necessary
Specifications
Rated Line Pull
5000lbs (2268kg)
Motor (Series Wound)
12V DC Input Power: 3.8hp (2.8Kw)
Gear Ratio
165:1
Gear Train
3-Stage Planetary
Drum Size
(Dia.) 50 x 137.5mm

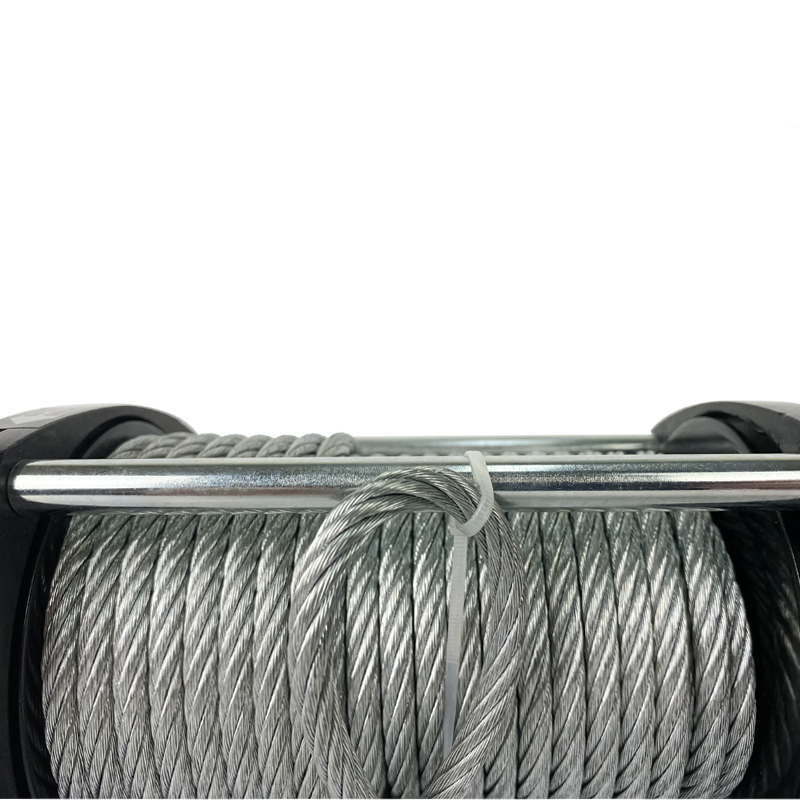

Rope Supplied
Steel Cable
Rope Size
(Dia.) 6.3mm x 12m
Hook Size
1/4"
Winch Dimensions
397 x 117 x 120mm
Mounting Bolt Pattern
76 x 168mm
Net Weight
15.3kg
