SKU: TJSHD12

Jack Stand Heavy Duty Utility 10000lbs

$385.00

The ultra-heavy duty utility jack stand is a strong and durable solution to help lower and raise your trailer and truck. With a massive lift capacity of 10,000lbs the jack is used on some of the biggest and heaviest agricultural and industrial trailers

Description

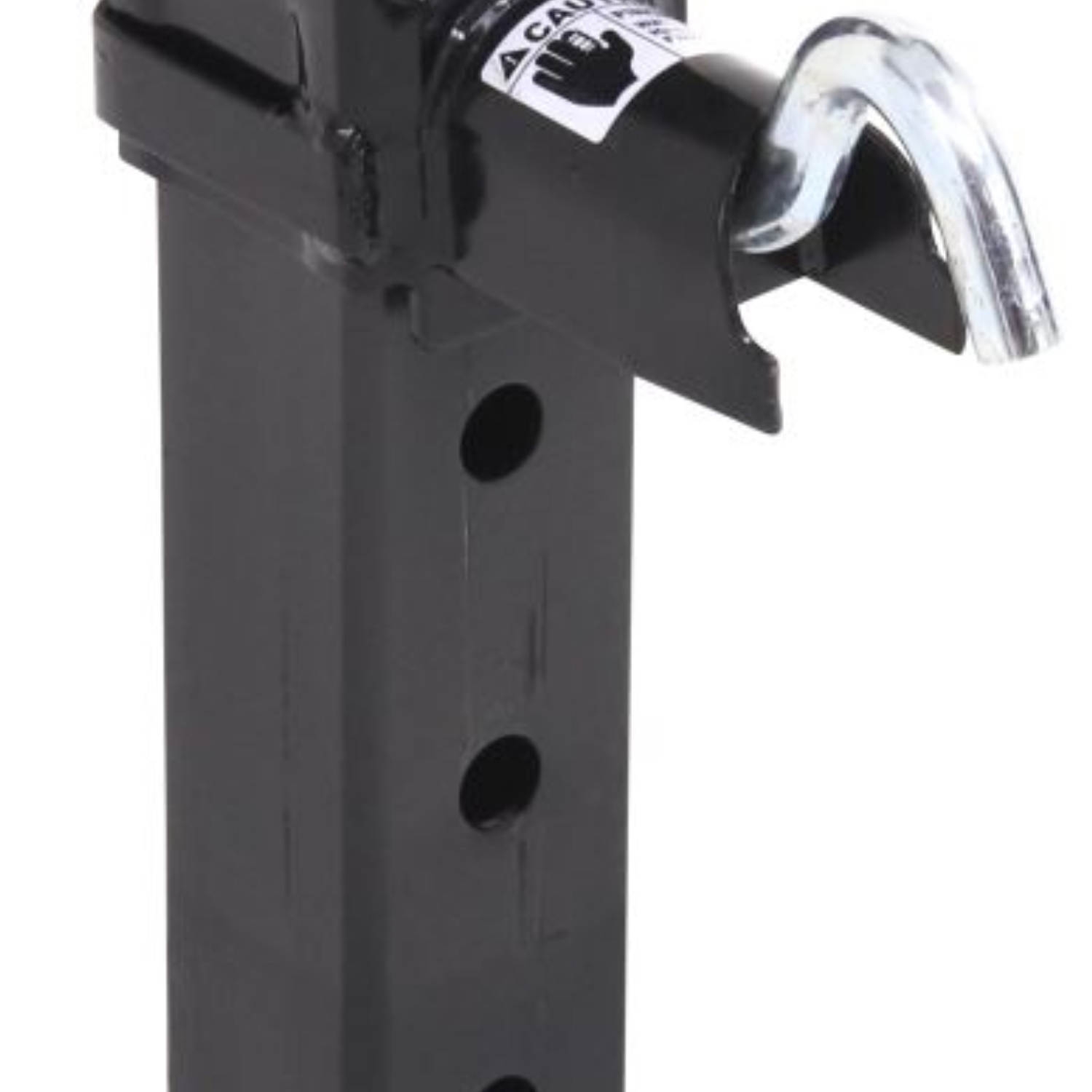

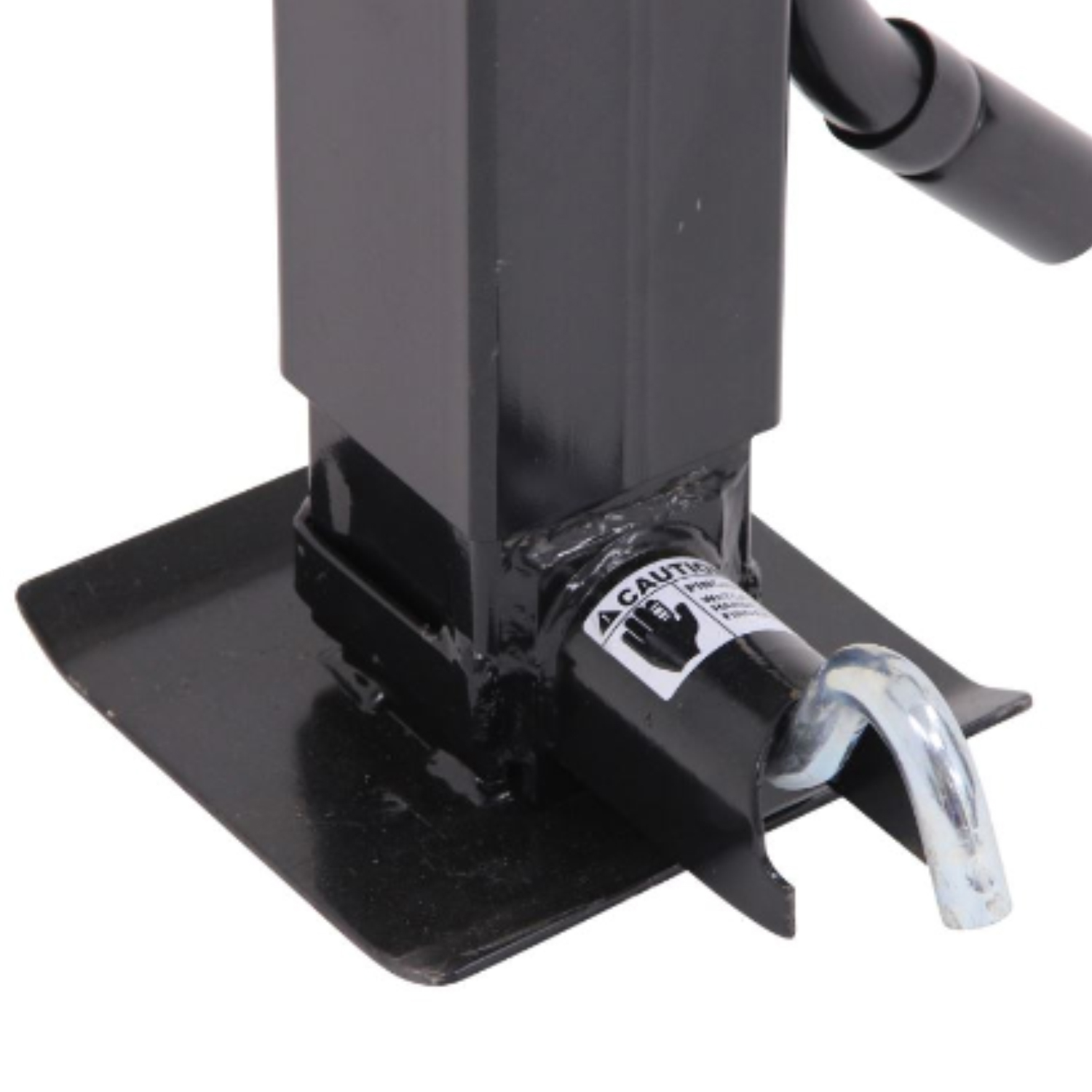

Ideal for agricultural and industrial applications, this durable and strong jack allows for heavy lifting. With the large square footplate, this minimises the jack from sinking into soft ground making it easier and safer to use on agricultural and Australian terrains. The side wind handle makes for obstruction free operation, easy winding and clip away storage when not in use. The drop leg features spring return, increasing overall extension for maximum adjustability. The jack also features two grease nipples for effortless greasing, twin thrust bearings for easier jack extending and retracting and also a painted black finish to suit your towing set up.

Advantages

  • 10,000lbs (4,534kg) rated
  • Easily raise or lower your trailer
  • Black powder coated finish
  • Spring Return for easy adjustment
  • Easy Greasing with Built-In Grease Nipples
  • Weld-On Installation



What’s Included

  • 1  x  Heavy duty utility jack (TJSHD12)
Specifications
Support Capacity
12,000lbs (5443kg)
Lift Capacity
10,000lbs (4534kg)
Finish
Black powder coated
Material
Steel
Crank Handle
Included
Installation
Weld on
Retracted Height
710mm
Extended Height
1022mm
Extended Height (with drop plate)
1360mm
Drop Leg Hole spacing
85mm
Total lift screw travel
315mm
Outer tube diameter
100mm
Footplate dimensions
210 x 200mm
