SKU:
JWDC
Jockey Wheel Double Clamp Zinc
$22.00

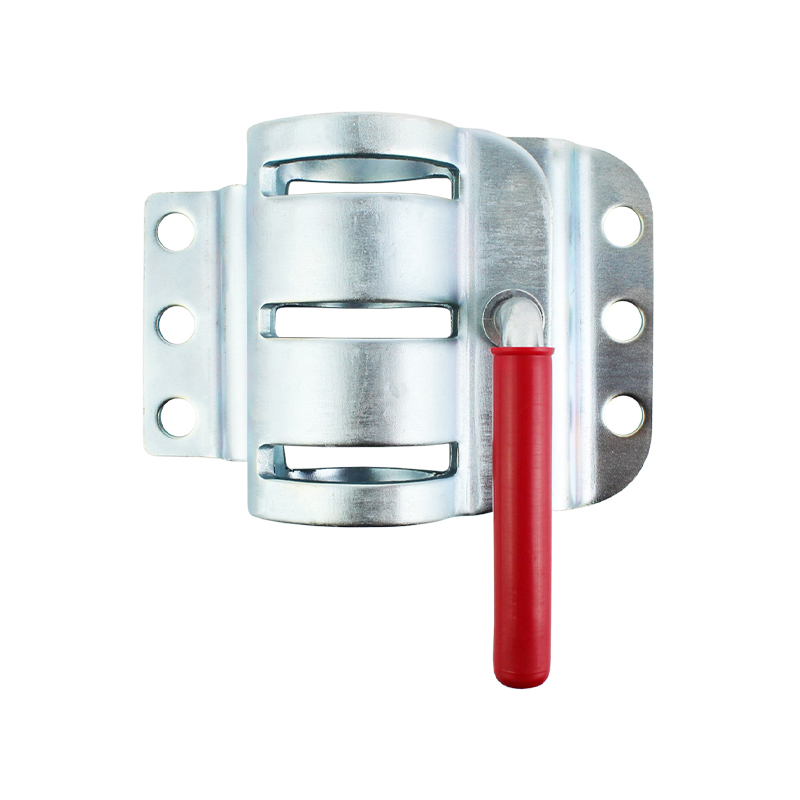

Double clamp bracket suited for clamp type jockey wheels. Provides extra strength and allows for the jockey wheel to be taken on and off quickly.
Description
The clamp style design lets you easily clamp your jockey wheel and remove it when needed. This bracket is designed to securely hold the jockey wheel, making it easier to maneuver and transport the trailer or caravan. Clamp can be mounted either via bolts or can be welded directly onto the drawbar to attach your jockey wheel.
Advantages
- Easy to unwind handle
- Suits clamp type jockey wheels
- Quick and easy installation
- Weldable or bolt on bracket
- Durable solid rubber wheel
- Zinc plated finish
What’s Included
- 1 x Jockey wheel double clamp
Features
- Suits most clamp style jockey wheels – 48mm OD tubing.
- Provides multiple mounting heights for either bolt on or weld on applications.
- Double clamp style, securely holds jockey wheel in place.
Specifications
Suits
48mm O.D tube clamp type jockey wheels
Installation
Bolt on or weld on
Distance beween bolt holes on bracket
13mm
Distance between holes on bracket
Centre to centre 150mm
Top Hole to Middle Hole Measurement
Centre to Centre 32mm
Top Hole to Bottom Hole Measurement
Centre to Centre 63mm
Finish
Zinc plated
