SKU: LED286R

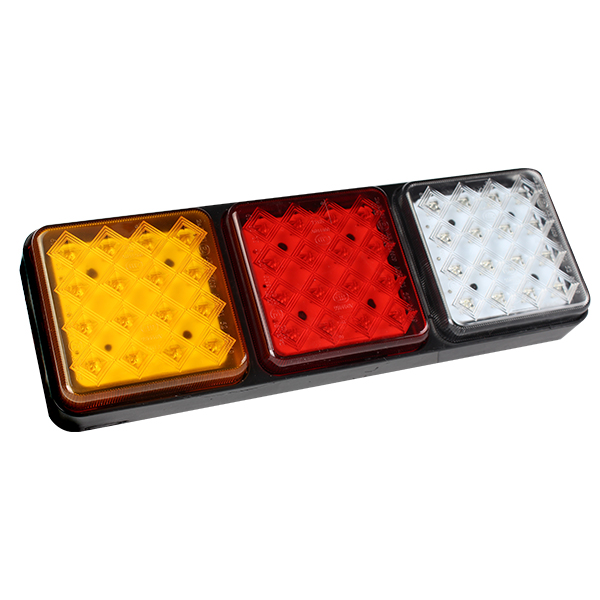

LED Combo Light Multi Volt 286 x 96mm 12/24V with Reverse

$66.00

Trailer lights are essential for a safe journey for yourself and others on the road. Fitted with bright LEDs providing stop, tail, indicator and reverse functionality.



Out of stock

Description

LED rear combination lights have everything you need in a compact form factor, for when you are towing your trailer. Each light comes equipped with 48 bright individual LEDs which provides greater visibility and increased safety. These lights are water and dust resistant which is only possible due to the sealed polycarbonate lens and housing. As these lights are multi volt compatible, they can be used for various purposes on trucks, utes and even caravans as well. All the lights have been pre wired to make fitment as easy as possible. It is an all in one light which provides the basic functions that are required to ensure your safety, whilst also complying with regulations. This lighting is ADR approved and tested with CTA – 061040.

Advantages

  • IP67 Water and dust resistant
  • 16 Amber LEDs (Indicator)
  • 16 Red LEDs (Stop / Tail)
  • 16 White LEDs (Reverse)
  • Housed in polycarbonate lense
  • ADR Approved and Tested



What’s Included

  • 1 x LED Combination Light with Reverse

If you need any assistance with your wiring, please have a look at our installation diagram in the resources and downloads section.

Features
  • Sealed polycarbonate lenses and housing to ensure IP67 water and dust resistance.
  • Simple installation so all you have to do is screw the mounting plate and pop your lights in for tight fit.
  • Larger than the standard lights, so you have increased visibility whilst on the road.
Specifications
Size (L x W x H)
286 x 90 x 33mm
Individual Light (L x W)
90 x 85mm
Voltage
12-24V
E-Mark Certification
Yes
ADR
Approved
Function
Stop, Tail, Indicator
Water Resistance
IP67
Submersible
No
LEDs
48 Individual LEDs
Mounting Hole Centres
45mm
Cable
30cm of 4 core cable
White
Earth
Red
Stop
Black
Reverse
Yellow
Indicator
Brown
Tail
CTA Number
CTA-061040
ADR
ADR Approved & Tested
