SKU: LED190WV

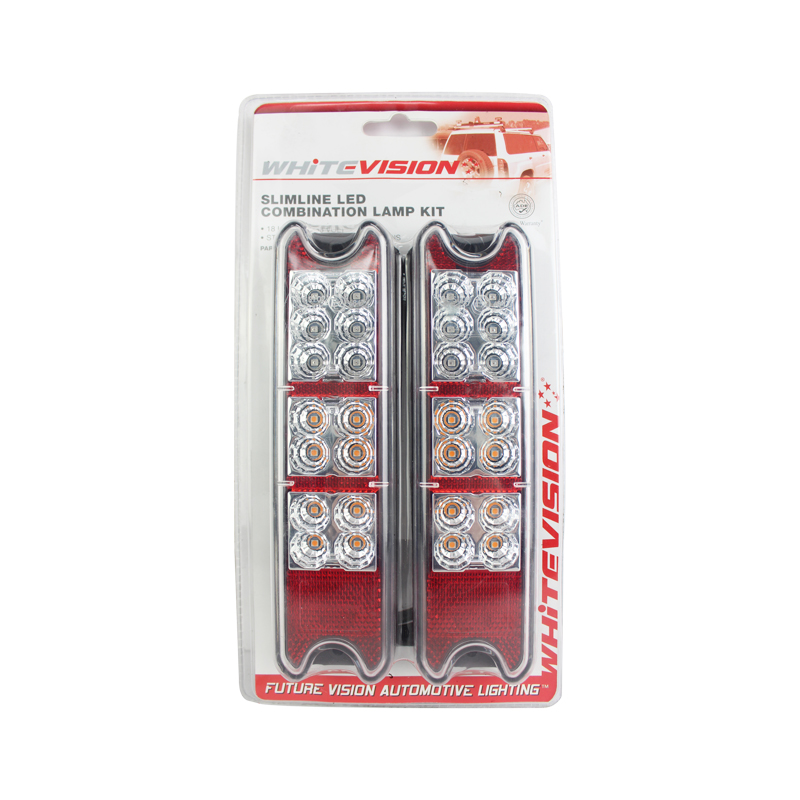

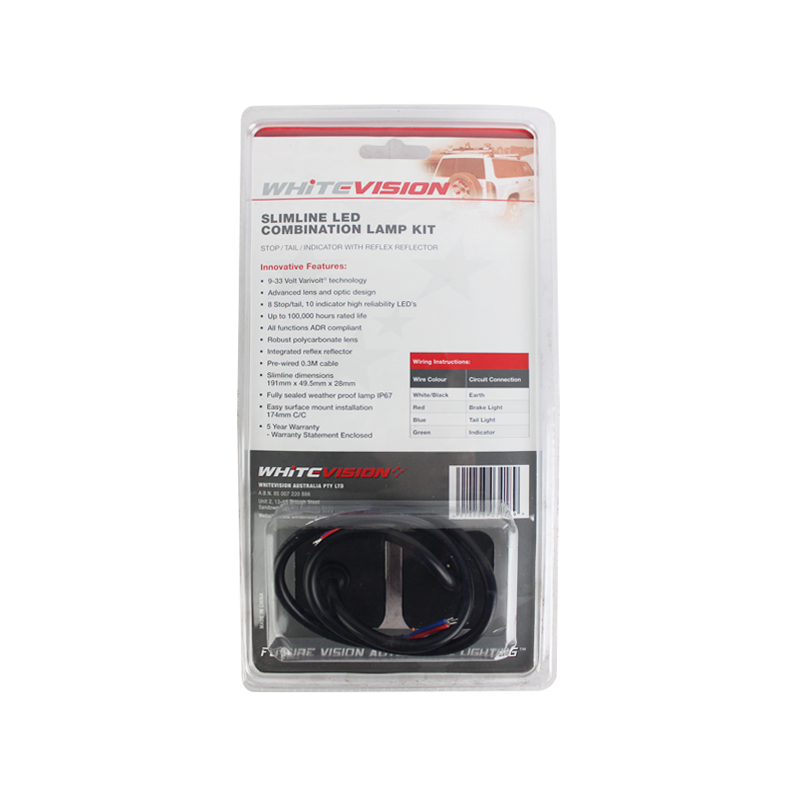

White Vision Slimline LED Combination Lamp Kit Multi Volt

$120.00

Trailer lights are essential for a safe journey for yourself and others on the road. Fitted with bright LEDs providing stop, tail and indicator functionality.



Description

White Vision LED rear combination lights have everything you need in a compact form factor, for when you are towing your trailer. Each light comes equipped with eighteen bright individual LEDs which provides greater visibility and increased safety. Incorporating stop/tail /indicator/licence plate and reflector functions for an all-in-one package. This modern design with a unique lens pattern produces a high-quality finish for rear lighting requirements.

Advantages

  • Weatherproof IP67 Hermetic sealing
  • 18 Individual LEDs with integrated reflex relector
  • Housed in polycarbonate lens ABS body
  • Compact form factor
  • Stop / Tail / Indicator
  • Multivolt 9 – 33 Volts



What’s Included

  • 1 x White Vision Slimline LED Combination Lamp Kit Twin Pack

If you need any assistance with your wiring, please have a look at our installation diagram in the resources and downloads section.

Features
  • Excellent for mine bars, trailer / ute lamps or commercial / industrial applications.
  • Pre wired with 30cm of cable, so it is an easy mount with the included back screws.
  • The LEDs come with an integrated reflector to provide greater visibility and safety.
Specifications
Size (L x W x H)
191 x 49x 28mm
Voltage
9-33Vk
ADR
Compliant
Function
Stop, Rear Position, Direction Indicator, Reverse, Reflector
Water Resistant
IP67
Submersible
No
LEDs
18 Individual LEDs
Mounting Hole Centres
174mm
Installation
Front screw
Cable
50cm of 4 core cable
White
Earth
Red
Stop
Blue
Tail
Green
Indicator
